Electrical Relay Module
It is a module that includes the power source interruption and reverse voltage prevention circuit through MOSFET switching.
Competitiveness
Reduction of system design size by replacing mechanical relay module
No noise is generated, eliminating the weakness of mechanical relay
Guarantee a semi-permanent life
Fast response speed through high-speed switching control
Detailed Description
Protection Function: High current, low voltage, high voltage, reverse voltage and short-circuit
High current control function
Low quiescent current
N-channel logic level MOSFET application

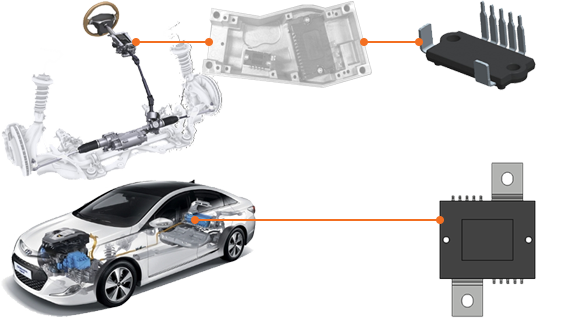

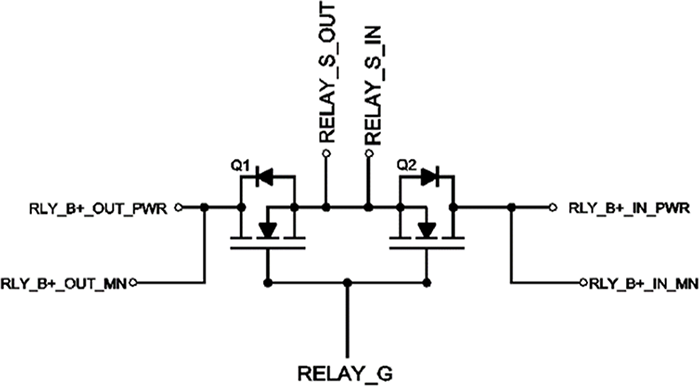

Circuit Design
Configuration
| Feature | Name | SPEC. |
 |
Mold | EMC |
| Lead Frame | Cu | |
| MOSFET | Bare Die 40V | |
| DBC Ass’y | Ceramic Substrate (Al2O3) Size : 16.2 * 8.2* 0.98T Cu Thickness : 0.3 * 0.38 * 0.3T |
Specifications
| Item | SPEC. | Remarks |
| Operation Voltage Range | 40V | Rated Voltage 12V |
| Drain current(continuous) | 180A | Tc = 25℃ |
| RDS(on) max | 0.9mΩ | VGS = 10V ID = 100A |
| Operation Temperature | -40 ~ 125℃ | |
| Mounting Screw Torque | 1.3 ~ 1.5N.m | M3 |
